Product Details

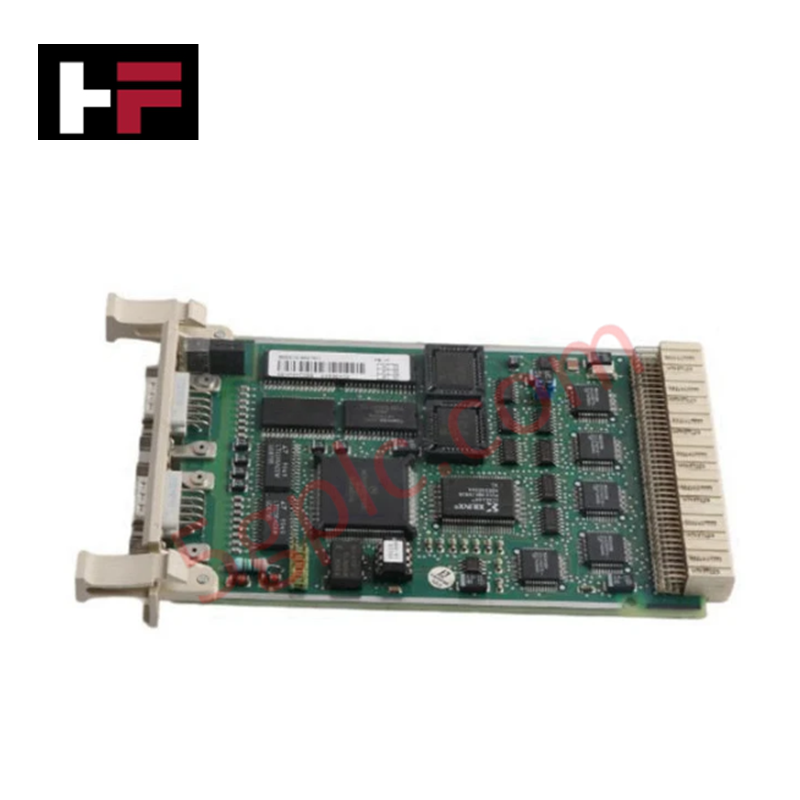

The ABB 1KHW002296R0001, also cataloged as the 1KHW002296R0001 Universal Digital Power Line Carrier Module, operates as a dedicated hardware component for high-speed data packet and analog voice channel transmission over high-voltage conductor networks within power substation automation systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1KHW002296R0001 |
| Brand | ABB |
| Origin | Switzerland |
| Operating Temp | -20 to 55 deg C |
| Power Consumption | Station battery powered via internal DC rail |
| Operational Mode | Software configurable analog and digital hybrid operation |
| Channel Capacity | Up to 3 analog channels (4 kHz) and/or 1 digital channel |
| Data Rate | Up to 320 kbps |
| Nominal Bandwidth | 2 to 32 kHz |
| Carrier Frequency Range | 24 to 1000 kHz |
| Environmental Protection | High electromagnetic interference (EMI) and overvoltage immunity |
Backplane Bus Communication Velocity and Firmware Flash Compatibility
The 1KHW002296R0001 module processes digital data streams up to 320 kbps while maintaining stable backplane bus communication velocity across system subracks. Integrated DSP algorithms handle software-configurable modulation across carrier frequencies ranging from 24 to 1000 kHz. Standardized firmware flash compatibility allows seamless transition between legacy analog signals and modern packet-based protocols without requiring backplane hardware replacement or decreasing I/O density scaling.
Frequently Asked Questions
Q: Can the 1KHW002296R0001 module handle simultaneous analog and digital transmission?
A: Yes, the unit is software-configurable to operate in a hybrid mode, supporting up to three 4 kHz analog channels alongside a dedicated digital data channel within a maximum 32 kHz bandwidth allocation.
Q: How does the module handle high electromagnetic interference present in substation switchyards?
A: The physical circuit architecture incorporates front-end surge suppression and industrial-grade isolation barriers to prevent overvoltage damage and maintain signal integrity against harsh EMI events.
Q: Is field modification of carrier frequencies supported on this hardware?
A: Carrier frequency adjustments between 24 kHz and 1000 kHz are controlled via software parameter configuration without physical component swaps on the PCB.
Field Installation Guidelines
- Disconnect control power to the subrack and isolate line coupling tuners before installing or removing the module.
- Confirm that card slot alignment rails are free of debris and that backplane connector pins are unbent.
- Insert the 1KHW002296R0001 circuit board firmly into the subrack slot until front panel connectors engage cleanly with the backplane bus.
- Fasten all front-panel retention screws to secure the module frame and establish chassis ground connection.
- Connect high-frequency coaxial cables and signal lines, ensuring shield grounds attach directly to the station earth ground bus.
