Product Details

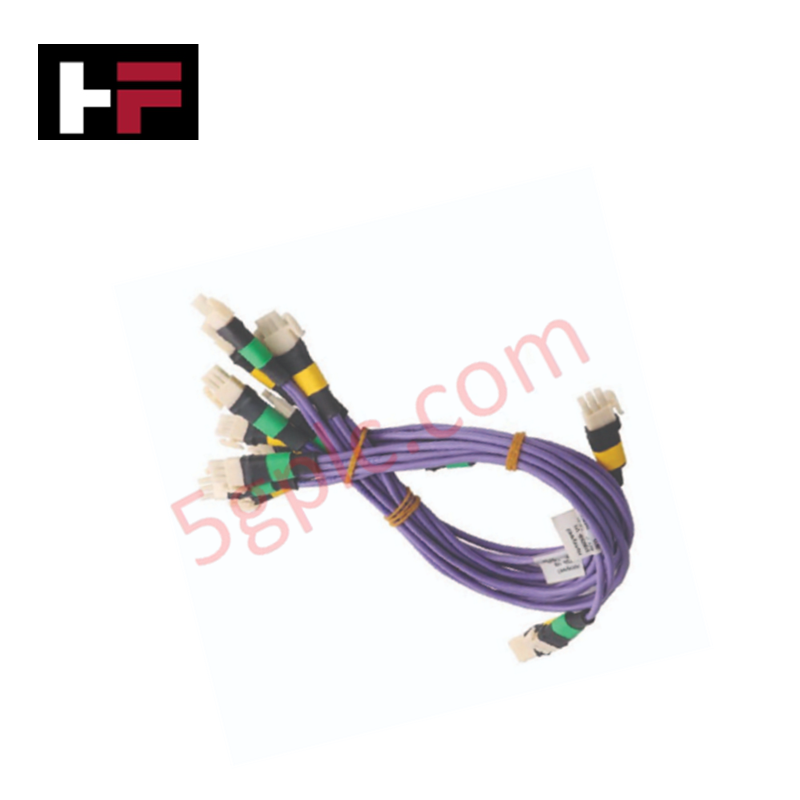

Configured for high-speed serial backplane extension and bus signal routing in Honeywell Experion PKS platforms, the Honeywell 51202329-400 (51202329-400 I/O Link Cable) provides direct physical/electrical execution. The heavy-duty industrial cable assembly connects I/O Link interfaces between C300 controllers, I/O Input Output Termination Assemblies (IOTAs), and high-density chassis racks across a 4.0-meter span. Engineered with internal multi-strand copper conductors and overall braided shielding, the cable maintains high-bandwidth bus communications while suppressing electromagnetic interference in electrically noisy control environments.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202329-400 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.85 kg |
| Dimensions | 4.0 m length |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | Passive physical media |
| Cable Type | High-Density I/O Link Cable Assembly |
| Length | 4.0 m (approx. 13.1 ft) |
| Connector Type | Heavy-duty latching I/O Link connectors |
| System Platform | Honeywell Experion PKS C300 / High-Performance Process Manager (HPM) |
4-20 mA HART Loop Protocol & Channel-to-Channel Isolation
The 51202329-400 I/O Link cable incorporates high-coverage foil and braided shielding structures that isolate high-speed serial bus communications from adjacent 4-20 mA HART loop protocol wiring runs. By maintaining strict differential impedance across internal data pairs, the cable preserves channel-to-channel isolation parameters established on primary I/O cards. This prevents high-frequency switching noise or motor drive field interference from coupling onto the bus, maintaining deterministic communication cycles between central processors and field termination racks.
Frequently Asked Questions
Q: Can the 51202329-400 I/O Link cable be connected or disconnected while the controller rack is active?
A: Live connection or disconnection of I/O Link cables should be avoided unless the specific I/O channel or redundant link pair has been gracefully placed into standby mode to prevent bus fault trips.
Q: What is the maximum recommended bend radius for installing this 4-meter cable inside control cabinets?
A: To prevent internal pair distortion and shield degradation, maintain a minimum bend radius of at least 10 times the outer cable diameter during routing.
Field Installation Guidelines
- Inspect cable connector pins and shell latches for physical damage prior to installation into IOTA I/O Link ports.
- Align the connector keyways with the matching receptacle on the controller base or IOTA, pressing firmly until locking clips engage fully.
- Route the cable through dedicated low-voltage communication conduits, maintaining separation from high-voltage AC cables and inductive load lines.
- Fasten strain-relief tie-wraps near cable entry points to prevent mechanical tension from pulling against the connector sockets.
