Product Details

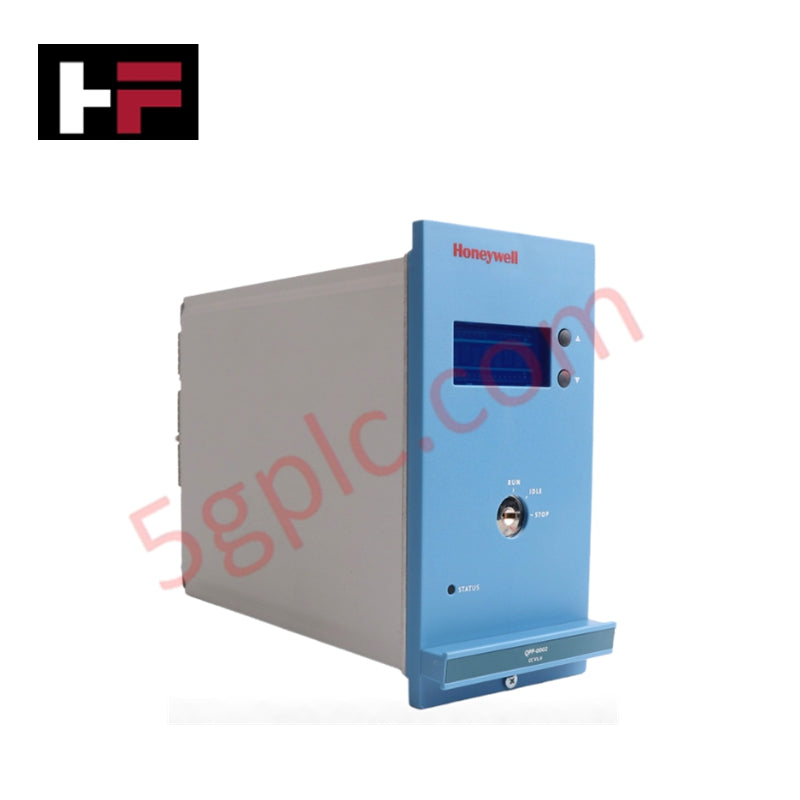

The Honeywell FC-QPP-0002 CC V2.0, also cataloged as the FC-QPP-0002 Quad Processor Pack, operates as a dedicated hardware component for centralized safety logic execution and high-speed multi-core computation within Honeywell Safety Manager and Fail Safe Controller (FSC) platforms. Powered by a 24 VDC main supply drawing 25 mA typical alongside a 5 VDC backplane rail drawing up to 1.2 A, the unit manages system task execution through a quad-core processor operating at clock frequencies up to 2.4 GHz. Integrated hardware includes 8 GB DDR4 RAM and a 128 GB SSD for onboard system memory management, supported by 4 Ethernet ports, 2 USB interfaces, and 2 serial communication paths to execute deterministic control loops.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FC-QPP-0002 CC V2.0 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 1.36 kg (3.00 lbs) |
| Dimensions | 100 mm x 100 mm x 30 mm |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | 25 mA typical (24 VDC) / 1.2 A max (5 VDC ±5%) |
| Processor Architecture | Quad-core up to 2.4 GHz |
| System Memory | 8 GB DDR4 RAM |
| Storage | 128 GB SSD |
| Communication Interfaces | 4 Ethernet ports, 2 USB ports, 2 Serial ports |
| Output Supply Voltage | 15 to 31 VDC |
FOUNDATION Fieldbus & Channel-to-Channel Isolation
The FC-QPP-0002 CC V2.0 incorporates internal channel-to-channel isolation networks that isolate central processing buses from field-side communications and network interfaces. When interfacing with plant asset management subsystems over FOUNDATION Fieldbus or serial protocol links, the module buffers high-frequency network traffic and suppresses electrical ground loops. This physical isolation prevents noise transients originating on field network segments from interfering with core microprocessor registers or degrading real-time safety loop processing cycles.
Frequently Asked Questions
Q: What are the backplane power supply tolerances required for the 5 VDC logic rail?
A: The 5 VDC supply input requires a tight regulation tolerance of ±5% with a maximum continuous current capacity of 1.2 A to maintain stable processor execution.
Q: How does the module handle legacy serial connectivity alongside Ethernet communications?
A: The module provides 2 dedicated serial communication channels alongside 4 Ethernet network ports, allowing real-time data exchange with legacy diagnostic interfaces without sacrificing high-speed safety bus throughput.
Field Installation Guidelines
- Mount the module onto the dedicated controller subrack chassis, sliding it along card guide channels until internal multi-pin backplane connectors sit fully engaged.
- Secure all front panel locking screws to establish proper frame earth connection and prevent mechanical displacement caused by cabinet vibration.
- Route 24 VDC main supply cables and network communication lines in separate, grounded wireways to minimize electromagnetic coupling.
- Verify that all RJ45 Ethernet connectors and serial port shielding braided covers connect securely to cabinet ground points prior to powering the 24 VDC bus.
