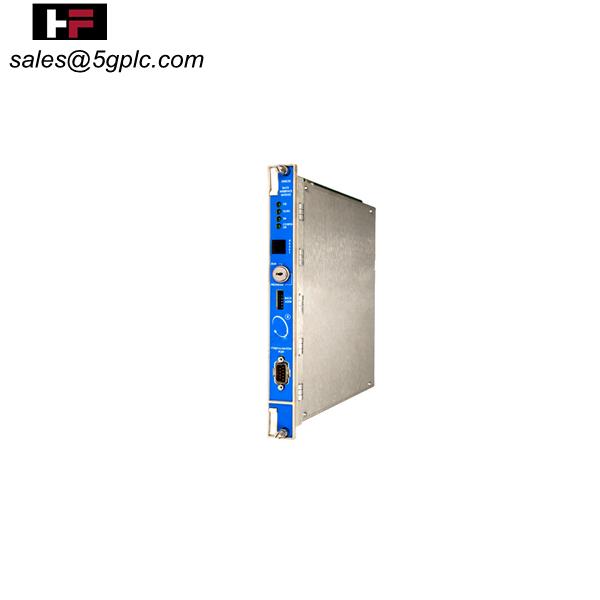

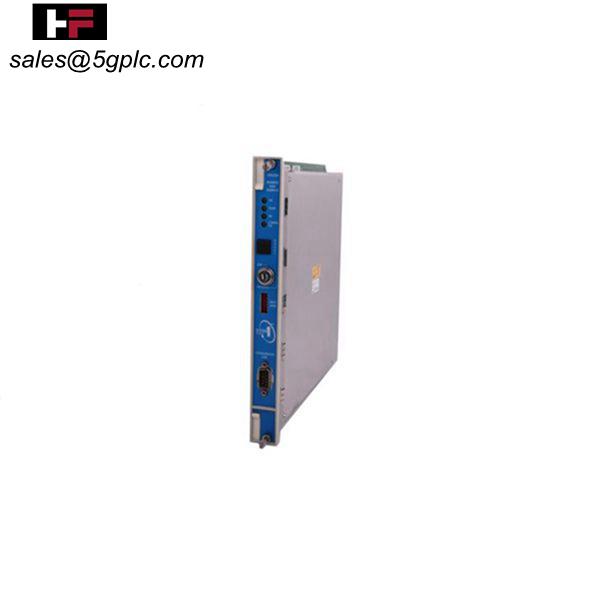

Bently Nevada 3500/20 CPU Rack Interface Module

Bently Nevada 3500/20 CPU Rack Interface Module

Bently Nevada 3500/20 Rack Interface Module in Stock

  • Brand:

    Bently Nevada
  • Item No.:

    Bently Nevada 3500/20
  • Payment:

    TT or Western Union
  • Product origin:

    USA
  • Shipping port:

    Xiamen
  • Lead Time:

    1-3 working days
  • Condition:

    Original New
  • Warranty:

    12 Months
  • Description:

    3500/20 Rack Interface Module
  • Product Type:

    CPU Module
  • System:

    Bently Nevada 3500

Bently Nevada 3500/20 CPU Interface Module 1 year warranty


Description :

Bently Nevada 3500/20 Rack Interface Module (RIM) is the primary interface into the 3500 rack. It supports a Bently Nevada proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies). The RIM provides the connections needed to support current Bently Nevada Communications Processors (Transient Data Interface External (TDIX) and Dynamic Data Interface External (DDIX)). Although the RIM does provide certain functions common to the entire rack, the RIM is not part of the critical monitoring path. The RIM's operation (or non- operation) has no effect on the proper, normal operation of the overall monitoring system.For Triple Modular Redundant (TMR) applications, the 3500 System requires a TMR version of the RIM. In addition to all the standard RIM functions, the TMR RIM also performs "monitor channel comparison." The 3500 TMR configuration implements monitor voting using the setup specified in the monitor options. Using this method, the TMR RIM continually compares the outputs from three (3) redundant monitors


Specifications

Part No. 3500/20
Inputs Power Consumption 4.75 watts, typical
I/O modules Standards RS232/RS422 serial  Internal modem communications
I/O Modules Trip multiply Used to place 3500 rack in Trip Multiply.
Rack reset Used to clear latched alarms and Timed OK Channel Defeat.
Outputs Front Panel OK LED  Indicates when the RIM 3500/20 is
operating properly.
Outputs TX/RX LED  Indicates when the RIM 3500/20 is communicating with other modules in the 3500 rack.
TM LED Indicates when the 3500 rack is in Trip Multiply
CONFIG OK LED Indicates that the 3500 rack has a valid configuration.
